The 1.2 Amps power consumption of this system is in the category of low-power automation equipment.
Other features of the system include electronic collision sensor, automatic closing timer, status key, side-by-side enhancements to the safety factor, emergency system support, interchangeable rails, silent and high-noise wheels, and more. .
The system has the ability to connect to all standard automation equipment and is included in the system program to connect to PLC, BMS networks and another unique feature of the system is the possibility of activating image and imaging control systems in the area, An example will be started by opening the capture door.
General system specifications:
Equipped with a logical microprocessor control system capable of automatically adjusting the speed of movement based on its weight and dimensions.
Significant systems are highly sensitive to objects and obstacles that are inherently moving along the way.
The DC 24V motorsystem is designed in accordance with Europe's standard, with maximum safety for the installer and user and allows for unlimited traffic.
Equipped with the key 6 Logic mode Custom control for selecting different transit modes and system functions for selecting different modes / functions On arrival and exit / operation only in the entry / operation mode only in the exit mode / can be limited to / do not move ( Pack) / for locking. (All of the above modes are available in emergency situations and using the Backup battery.
This unique feature allows the one-way door to allow no one to enter the final hours of the work, but to exclude those who are present in the conventional and ordinary passageway.
Another feature is the continuously open mode for transporting loads and transferring equipment from outside to inside and inside, which, in addition to traffic conditions, reduces the vulnerability of frames and depreciation and ...
Equipped with an electronic safety eye to detect a barrier in between.
Equipped with eyepieces for entry and exit, with the ability to detect the movement of persons in or around the adjustable door in various environments that are resistant to sunlight, which are 100% error-free.
Customizable functions:
Adjusts the speed of the door handle, as well as the ability to adjust the automatic re-opening and adjustable speed from 0.5 seconds to 13 seconds.
Ability to select different functions and system-specific system through the battery Back up and the electrical lock and changes to the system program.
Adjust the speed reduction in the direction of travel of the door.
Summer, Winter and Partial opening systems
Setting the Opening Time time
accessories:
Hand-held abandoned electric lock
Emergency power supply system equipped with battery for emergency situations and power failure.
Keyboard and control card for the control of commute as well as the ability to communicate with Access Control and personal computers.
Possibility to install remote control system.
Different platform sensitive forms

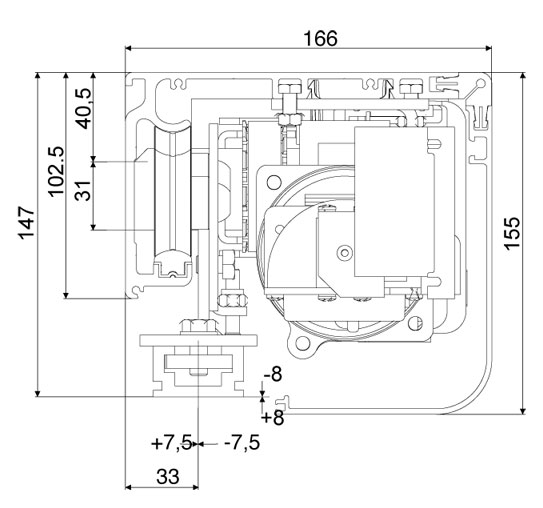

Dimentions :
